Customised Offshore A-frame 8t @ 2.0m Hsig

Scope of Work:

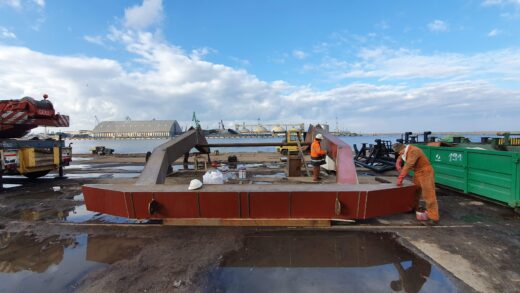

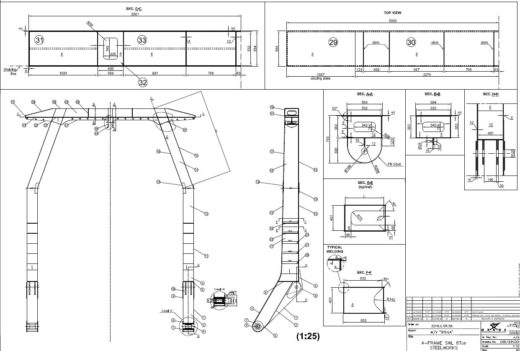

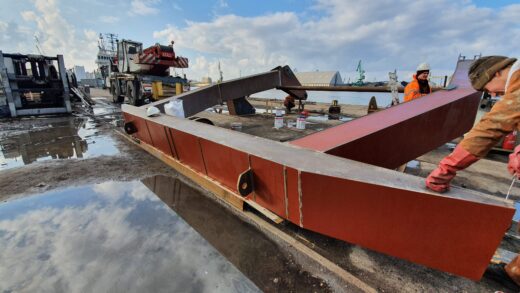

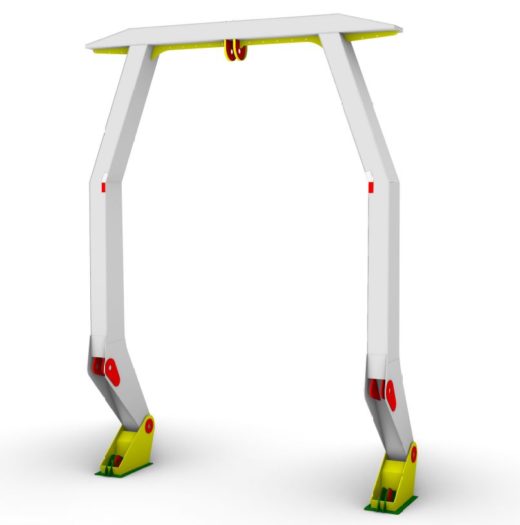

• A. A-FRAME – Structural Design & Basic Engineering;

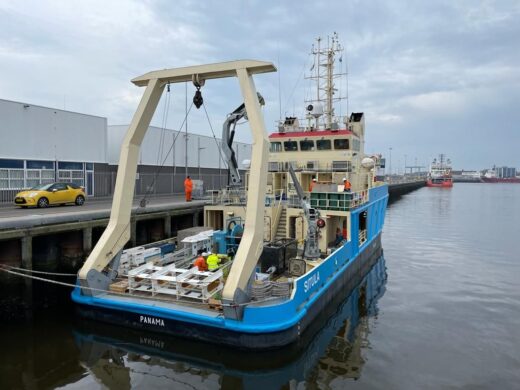

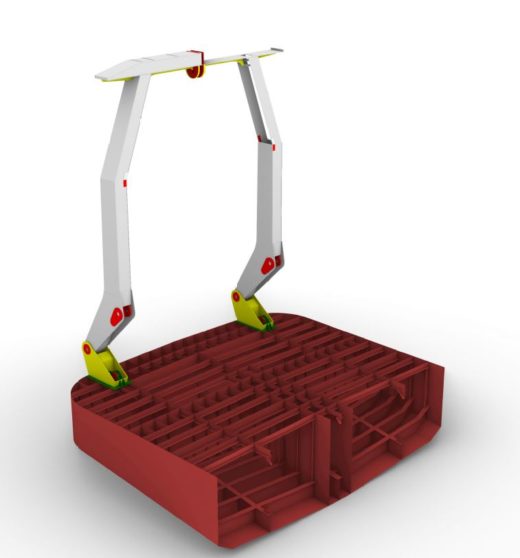

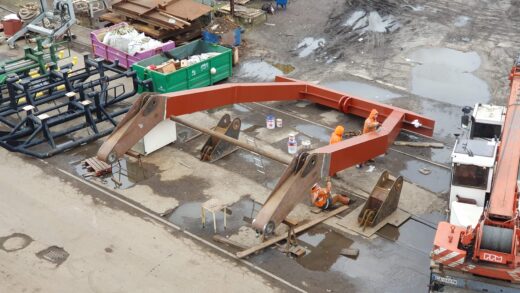

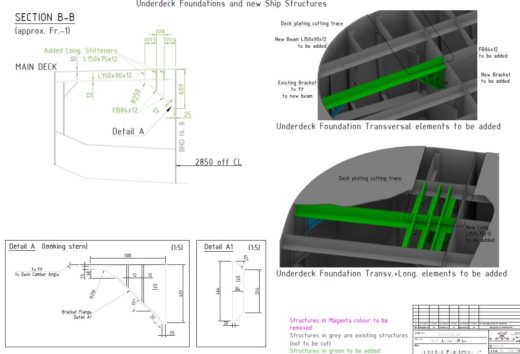

• B. DECK FOUNDATIONS – Structural Design & Basic Engineering;

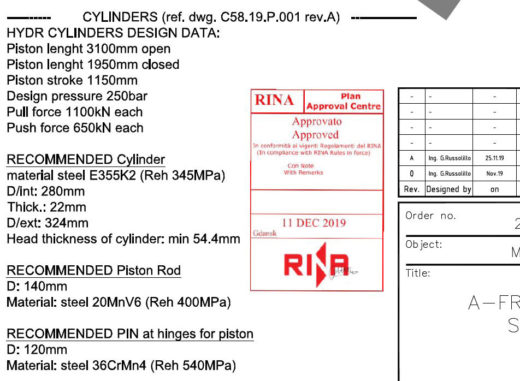

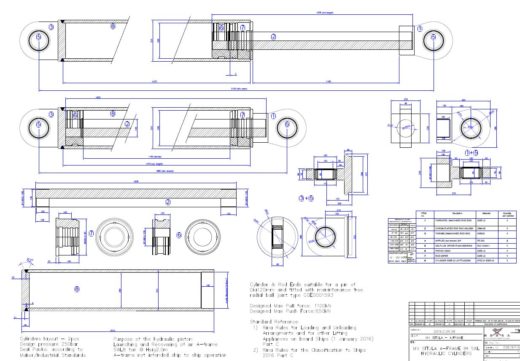

• C. HYDRAULIC CYLINDERS – Design and rule verification.

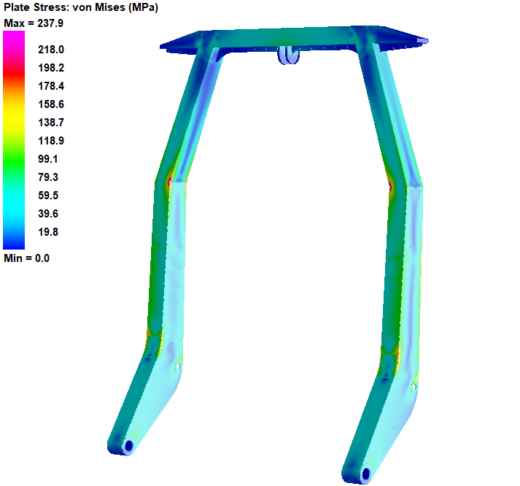

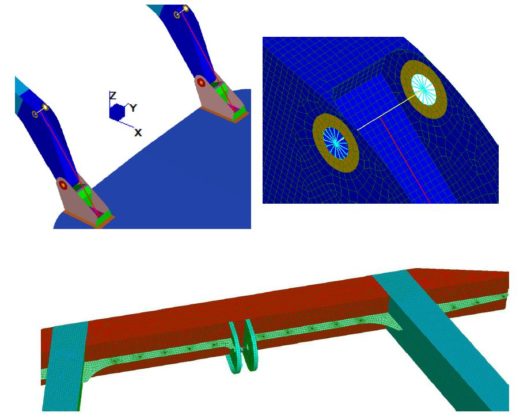

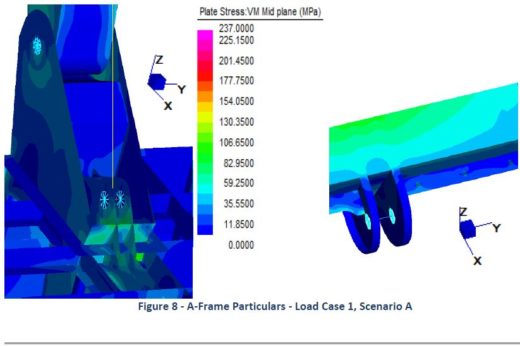

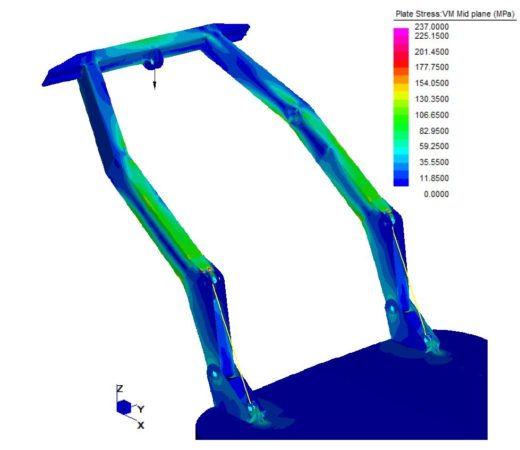

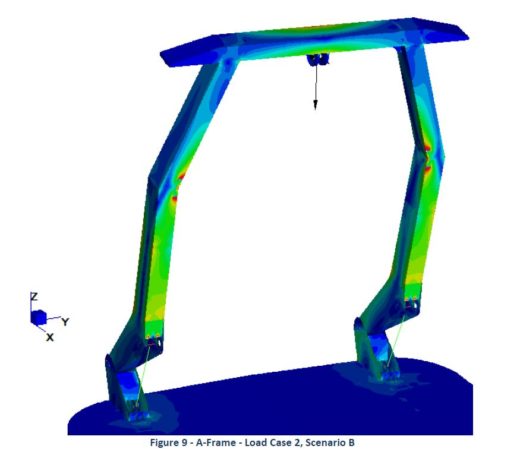

All supported by calculation reports, FE Analysis, 3D digital twin. Assistance for class approval. Project approved by Rina.

Reference Standards: RINA Rules for offshore lifting appliances (equivalent to API Spec 2C)

Special Comments: The deliverables include the bill of material, weight / cost estimation, selection of bearings and gears, stability check. The class approval received without any note and any comment. Complete design time: 2 weeks.

Main Feature: Compact Footprint (hinges and pistons are close each other) to reduce impact on deck area.
